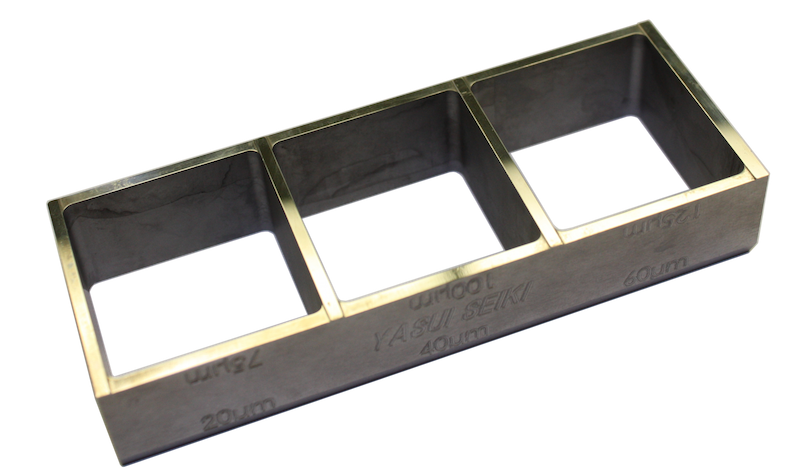

What is Multi-Applicator™?

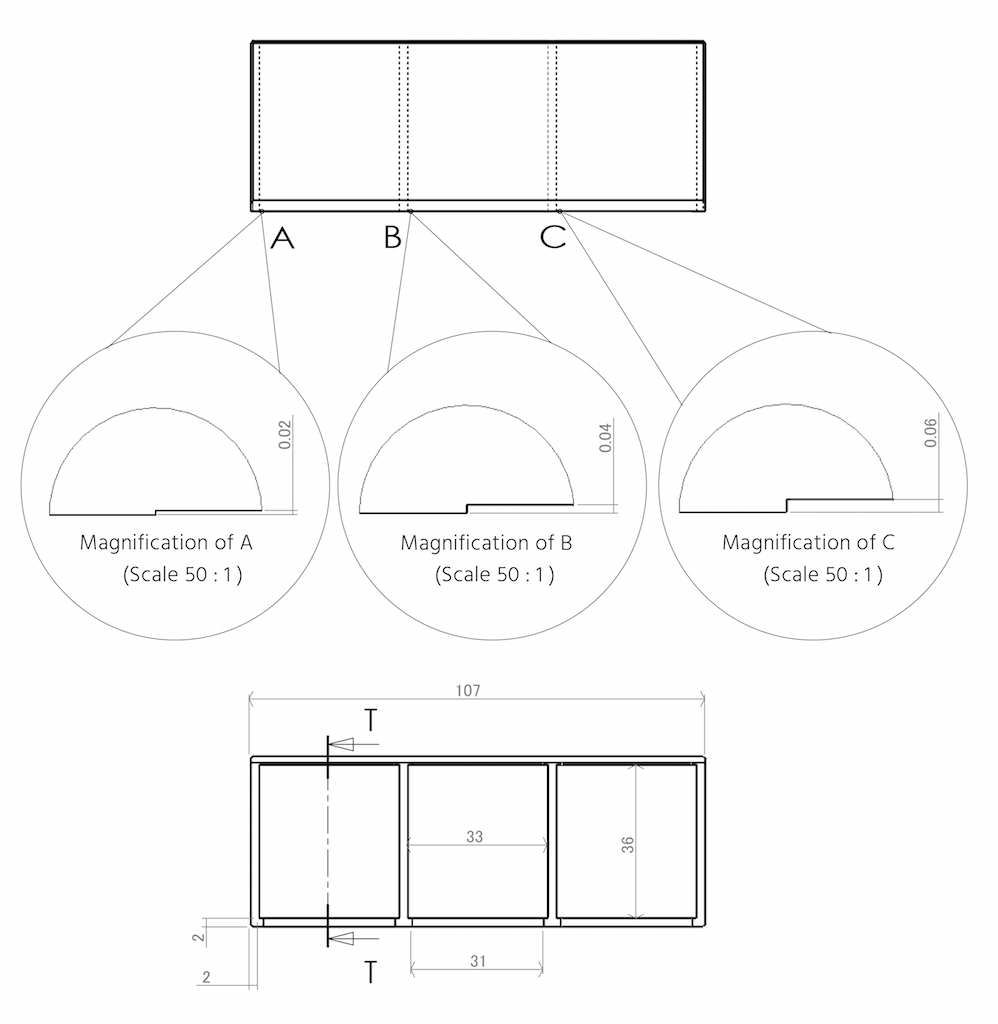

The Multi-Applicator™ is designed to simultaneously test multiple coating thicknesses. The standard specification comes with three compartments to test three thicknesses (M3), and can also be made reversible to test six thicknesses (M6). The compartment size and numbers can be customized to fit the customer's needs. Its high precision, wire cut, single-piece structure makes it easy to use and clean. It can be used to coat by hand or on a test coater such as Mini-Labo™ (R2R Tabletop Test Coater), Mini-Labo Deluxe™ (R2R Lab Coater) and βCoater™ (Precision Sheet Coater).



  • Width: 100mm to 500mm (customizable)
  • Height: 20mm
  • Stainless steel one-piece construction
  • Standard Gaps:
    • For low viscosity fluids: 20, 40, 60 um
    • For medium viscosity fluids: 75, 100, 125 um
    • For high viscosity fluids: 100, 200, 500 um
  • Custom Gaps: between 20 to 500 um

Yasui Seiki Workmanship

Yasui Seiki Multi-Applicator™ are made-to-order custom parts. Each applicator is designed and machined in-house to the 1/1000th of a millimeter precision using our precision wire-cutter.

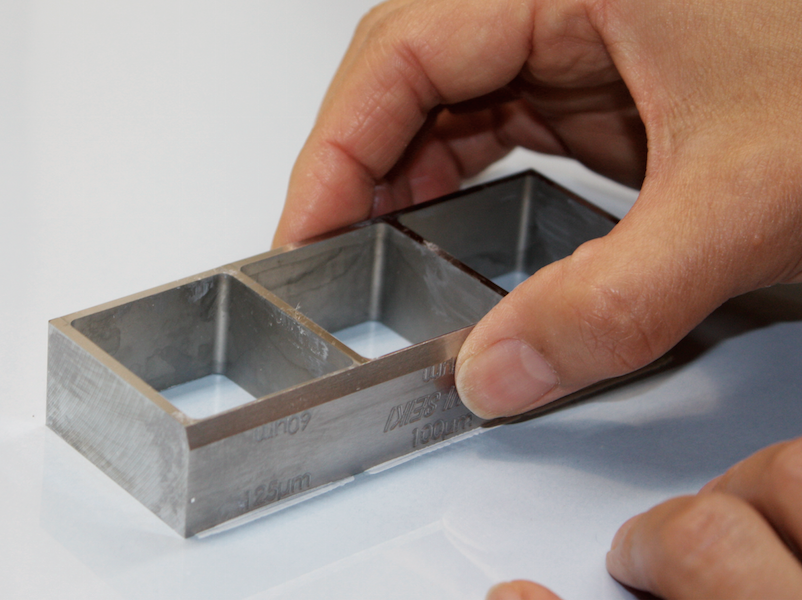

Multi-Applicator Manual Coating
Multi-Applicator™ Manual Coating

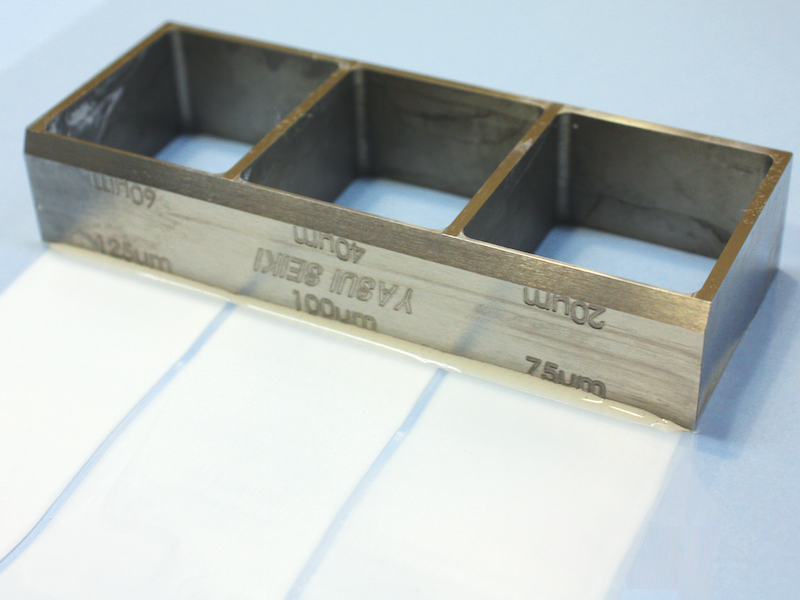

Multi-Applicator Manual Coating Result
Multi-Applicator™ Manual Coating Result
MICROGRAVURE™ Inspection 2

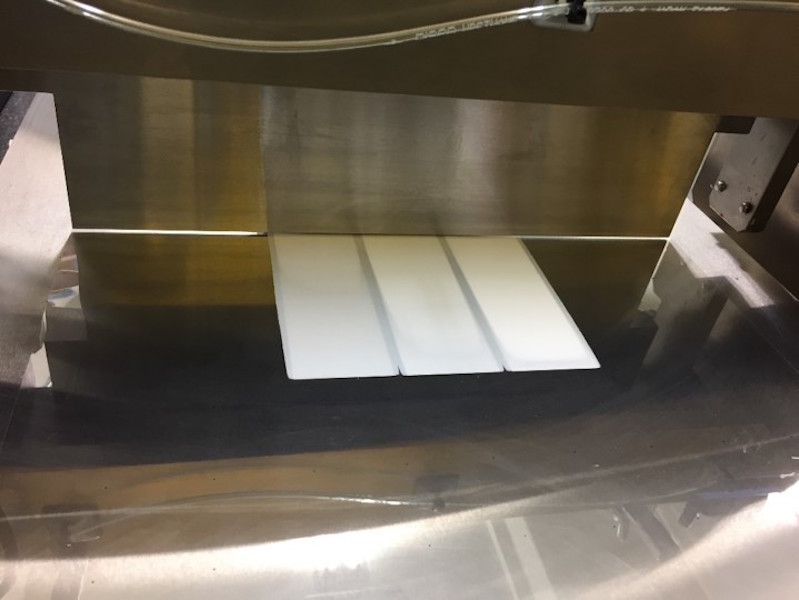

Multi-Applicator™ on βCoater™

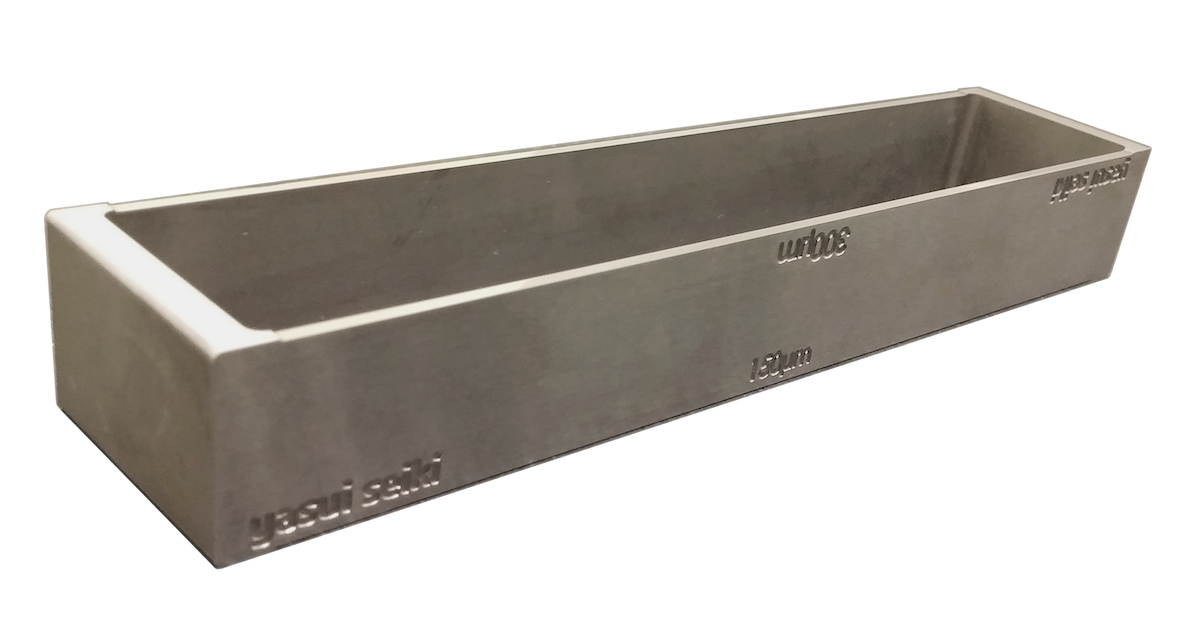

Applicator Box Variations

In addition to multi compartment, we can also make one-sided or double-sided applicator box with custom thicknesses. Let us know what you are looking for and we will make it for you.

Multi-Applicator Manual Coating Result
Double-sided Applicator Box (150um and 300um customizable)
Double-sided Applicator Box on Mini-Labo Deluxe™
