μCoater™ 350
Roll-to-Roll, 12" Wide Pilot Coater

μCoater™ 350

Discover the smartest, most compact roll-to-roll coating machine on the market. Our robust, small-scale pilot coater, the μCoater™ 350, is equipped with a PLC to support you from R&D coating trials to small-scale production. This versatile machine can be configured with MICROGRAVURE™ and/or slot die, with optional dry laminator and UV features. Experience its capabilities firsthand with an affordable demo at our Bloomington, IN facility.

If you would like a full custom coater, please check out CAD/ CAG series of coaters.

Please note that μCoater™ 350 is a packaged coater with limited options. It is NOT customizable.

Drawing

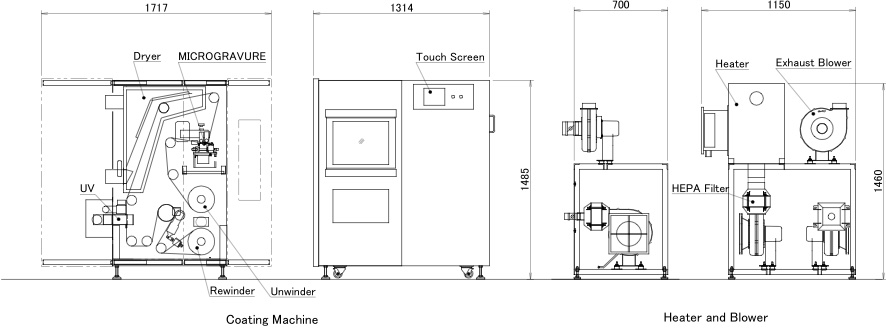

μCoater 350 drawing with named parts

Specifications & Options

μCoater™ 350 Standard Option
Coating Methods MICROGRAVURE™ Slot die 250mm
Coating Width 300 mm (11.8") -
Substrate Width 320 mm (12.6") -
Core 3" airshaft for 150-350mm (5.9"-13.8") wide cores -
Unwind/ Rewind Holds up to 200mm (7.8") outer diameter, 10kg (22lb) webs -
Tension Max 50N -
Dryer 1 m (3.28') 80°C (176°F) hot air dryer Temperature upgrade to 130°C (266°F)
Line Speed 0.5-5 mpm (1.64 to 16.4 fpm) -
Control PLC/ HMI -
UV System - Yes (3-step 120/80/60WPC)
Slot die Feeding Method - Pressurized tank
Dry Laminator - Yes
Footage Counter Yes -
Exhaust Blower Yes -
Enclosure Yes -

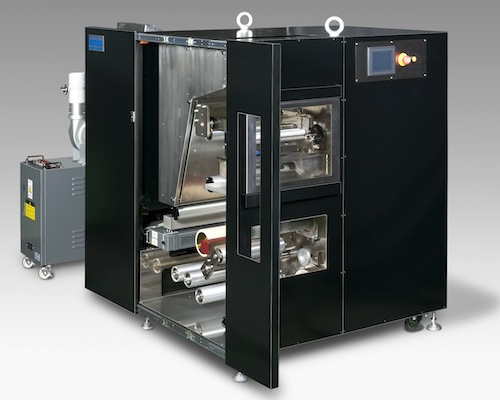

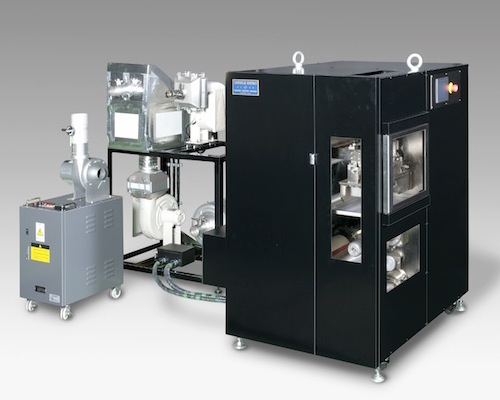

Alternate Views

μCoater™ 350
μCoater™
