Mini-Labo™
R2R Tabletop Test Coater

Mini Labo

Smallest, Roll-to-Roll Desktop Lab Coater

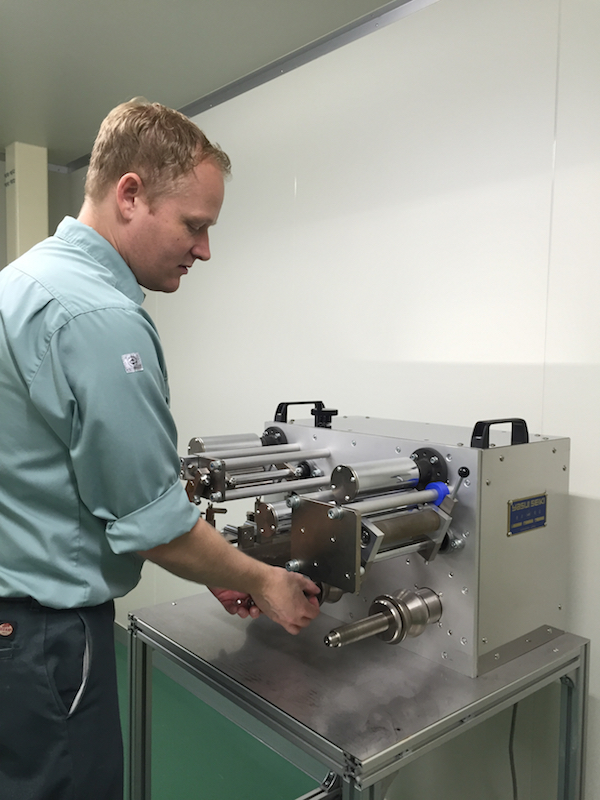

Mini-Labo Scale

Experience unparalleled versatility with our best-selling bench-top test coating machine, perfect for high-precision, high-quality lab coatings. This customizable tabletop R&D coater features our patented MICROGRAVURE™ and/or slot die coating head. Offering the smallest MICROGRAVURE™ system available on the market, it comes equipped with genuine Yasui Seiki MICROGRAVURE™ technology. Schedule a demo today at our facility in Bloomington, Indiana, USA.


If you require a larger, stand-alone roll-to-roll lab coater with enhanced features, explore our Mini-Labo™ DX! This model expands your capabilities with additional features designed to meet more extensive research and development needs.


IMPORTANT: Yasui Seiki/MIRWEC Coating is the exclusive authorized U.S. vendor for genuine Mini-Labo™ coaters.

Components and Options

Coating Method

Option(s)

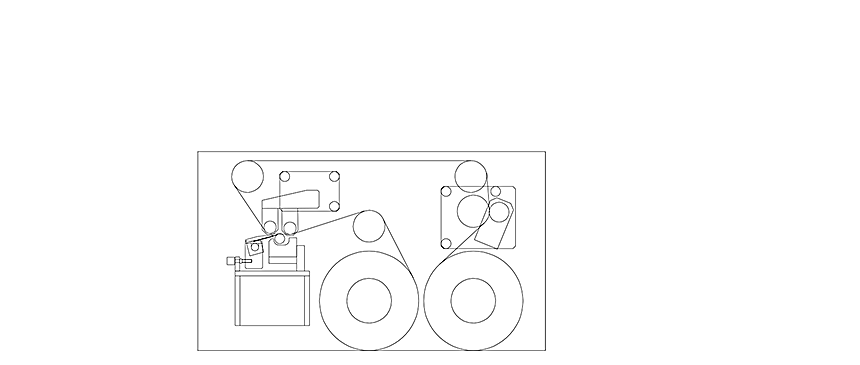

Mini Labo drawings
  • No special power requirement (regular 1-phase 110V 60Hz 20Amp)
  • Small footprint — 21.75"x 37.5"
  • Easy to add onto your existing test lab

Specifications

Mini-Labo™ Standard Option
Factory Requirements 1-phase, 110V, 60Hz, 20A
Dimensions - Standard D24.25” x W37.5” x H17.75” D24.75” x W47.25” x H32” with slot die and dryer
Coating Methods MICROGRAVURE™ Slot die (SUS)
Slot die (tungsten carbide lip)
Multi-applicator
Coating Width 120 mm (4.7") up to 320 mm (12.6")
Substrate Width 140 mm (5.5") up to 340 mm (13.4")
Guide Roll Width 150 mm (5.9") up to 350 mm (13.8")
Unwind/ Rewind Torque motor, max 200mm (7.8") outer diameter, 10kg (22lb) webs -
Tension Manual, max 25N -
Dryer - 0.2m (7.9")
100°C (212°F) or 160°C (320°F) hot air dryer(s)
Line Speed 0.2-2m/min (0.65 to 6.5 fpm) -
Dry Laminator - Yes
Wet Laminator - Yes
Interleaf Peeler - Yes
UV Cure System Yes (Metal Halide 3-step 120/80/60WPC)
Frame Extension - Yes
Footage Counter - Yes
Base Frame - Yes
E-Stop - Yes

Examples

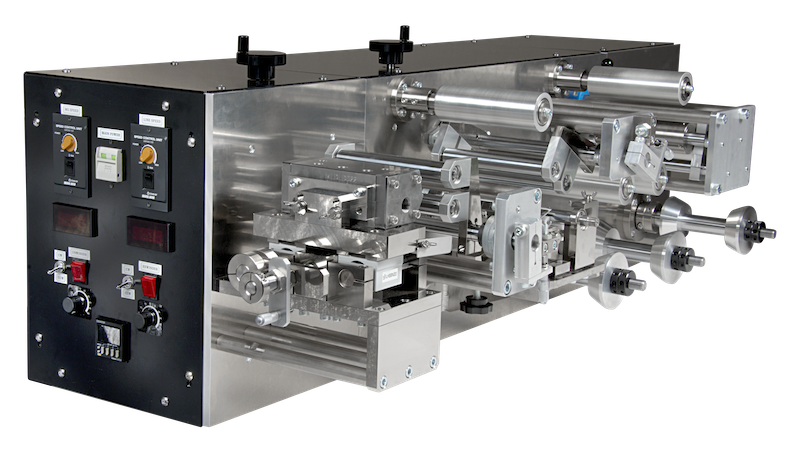

Mini-Labo™ with slot die and laminator
Mini-Labo™ with MICROGRAVURE™, slot die and dry laminator
Mini-Labo™ with MICROGRAVURE™, slot die and dryer
Mini-Labo™ with MICROGRAVURE™, slot die and dryer
Mini-Labo™ with slot die (only) and dryer
Mini-Labo™ with slot die and dryer

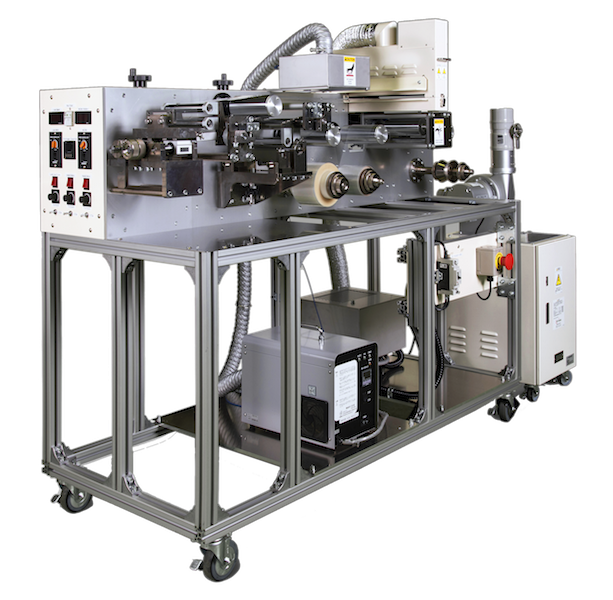

Mini-Labo™ with slot die, UV and laminator
Mini-Labo™ with MICROGRAVURE™, slot die, UV and dry laminator

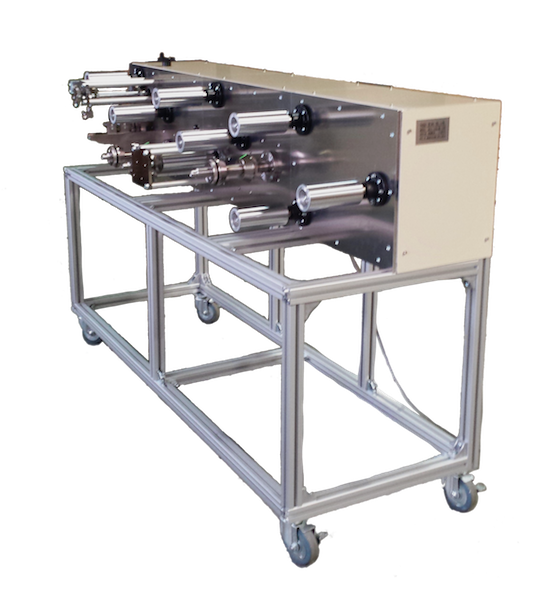

Mini-Labo™ with interleaf peeler, laminator and long frame extension
Mini-Labo™ with MICROGRAVURE™, interleaf peeler, dry laminator and long frame extension

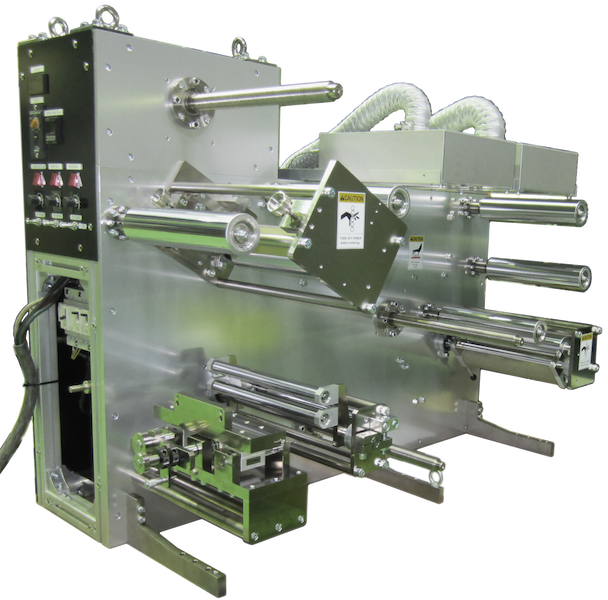

Mini-Labo™ with MICROGRAVURE™ and wet laminator
Mini-Labo™ with MICROGRAVURE™ and wet laminator

Videos

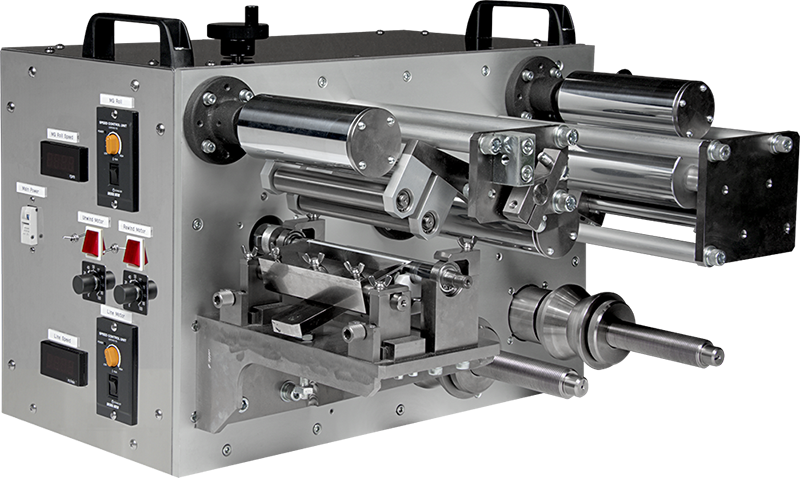

Mini-Labo™ with MICROGRAVURE™

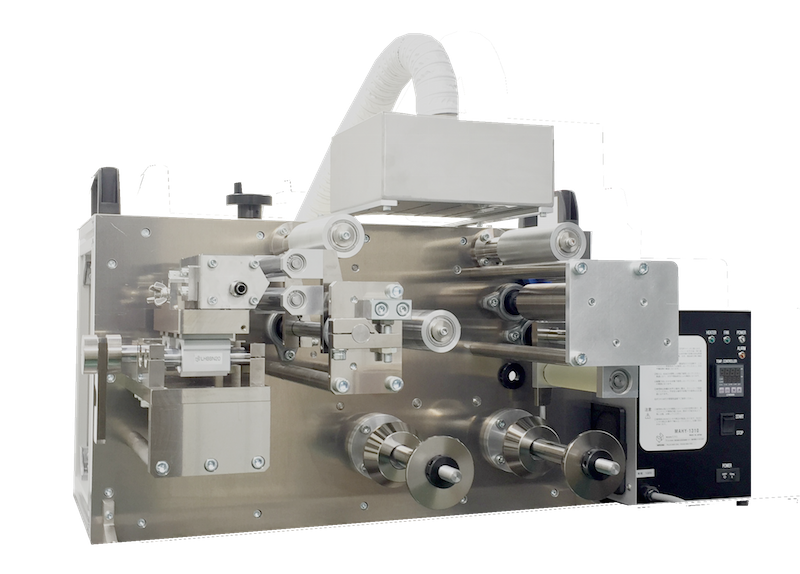

Mini-Labo™ with slot die
Printing solar cells
