βCoater™
Precision Sheet Coater

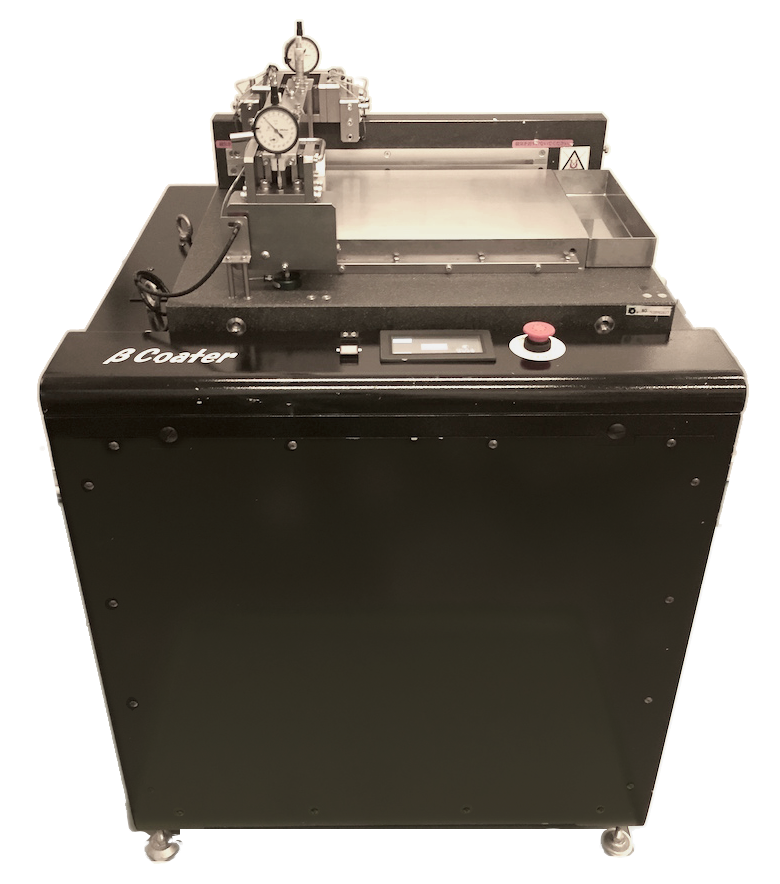

Beta Coater

Introducing our state-of-the-art, extreme precision knife-over-plate sheet coating machine, ideal for test coating on rigid substrates, such as glass. Discover this cutting-edge Japanese technology at our Bloomington, IN facility, where affordable trials are available.

Key features include:

  •   Extremely smooth blade movement, powered by precision linear servo motors.
  •   A 4cm thick slate plate that is perfectly smooth and parallel, enhanced with vacuum suction for optimal stability.
  •   An adjustable gap for versatile coating applications.

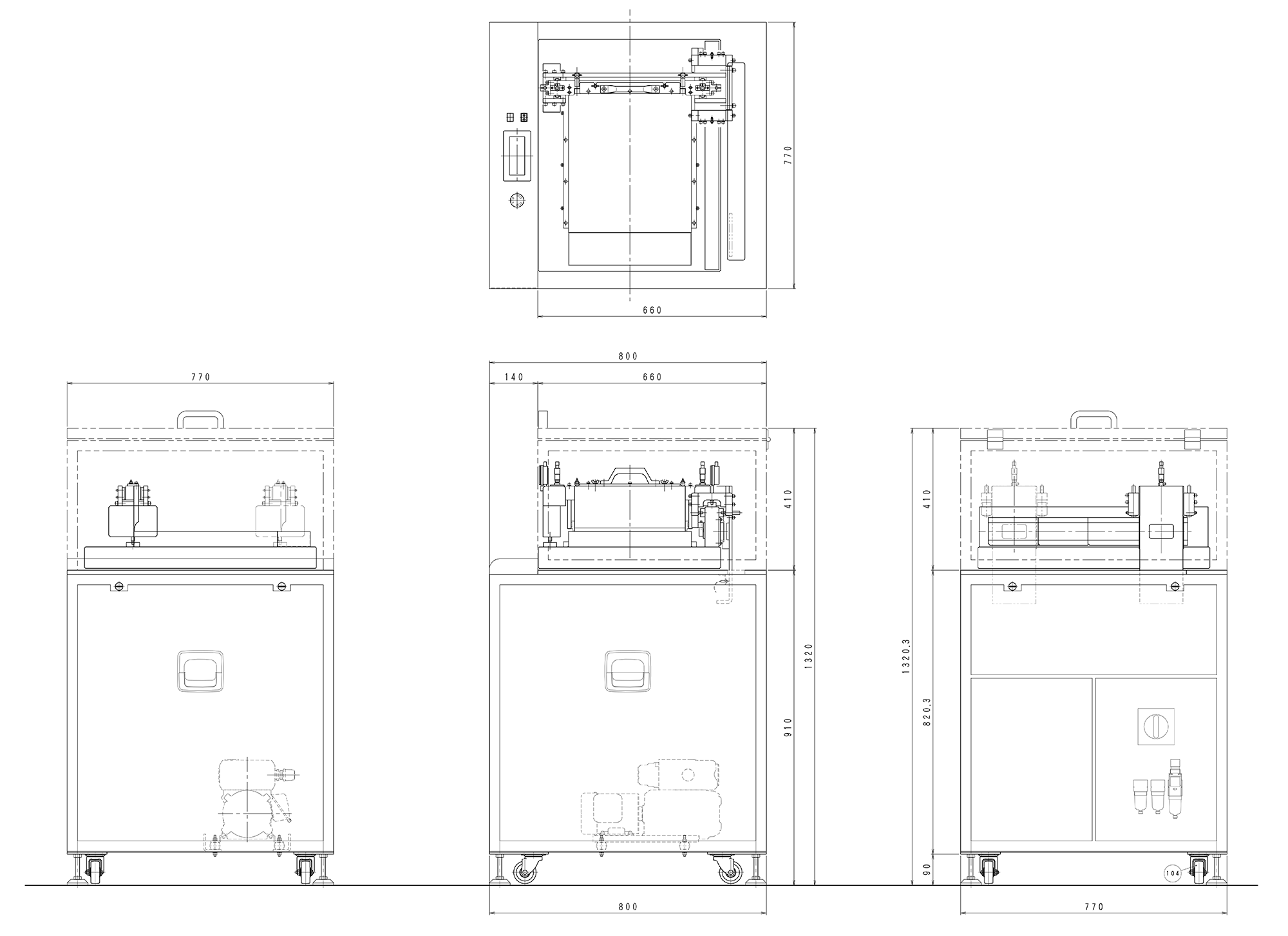

Drawing

Beta Coater drawing with named parts

Specifications

Coating Method Knife-over-plate, sheet coating
Reference Coating Thickness 20um to 200um and above
Maximum Coating Dimension 320 mm x 400 mm
Maximum Substrate Dimension 320 mm x 400 mm
Dryer N/A
Line Speed 0.5 m to 3 m/min
Coating Technique Variable gap blade
Driving System Linear servo motor
Linear Guide Air bearing floation
