TRI Coater™
Roll-to-Roll Coater

New Machine!

TRI Coater

All-in-One Test Coater for Thin-to-Thick Roll-to-Roll Coating

Introducing Yasui Seiki’s newest packaged coater, the TRI-Coater™. This all-in-one, thin-to-thick roll-to-roll test coater features MICROGRAVURE™, slot die, and knife coating heads. It boasts variable coating angles for the slot die and automatic tension control with a detachable touch panel. A perfect high-end pilot coater for creating reliable market samples.

Special Features

  • Single webpath for up to THREE coating heads: MICROGRAVURE™, slot die or knife
  • Variable coating angles for the slot die, up to 90 degrees/li>
  • Easy maneuverability with detachable touch panel
  • Automatic tension control, upgradable up to 100N
  • Versatile & customizable!

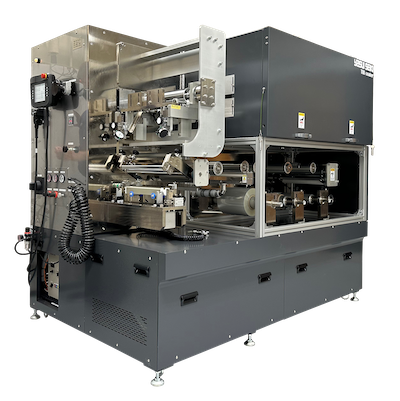

TRI Coater
The versatile, customizable, high-end TRI-coater™.

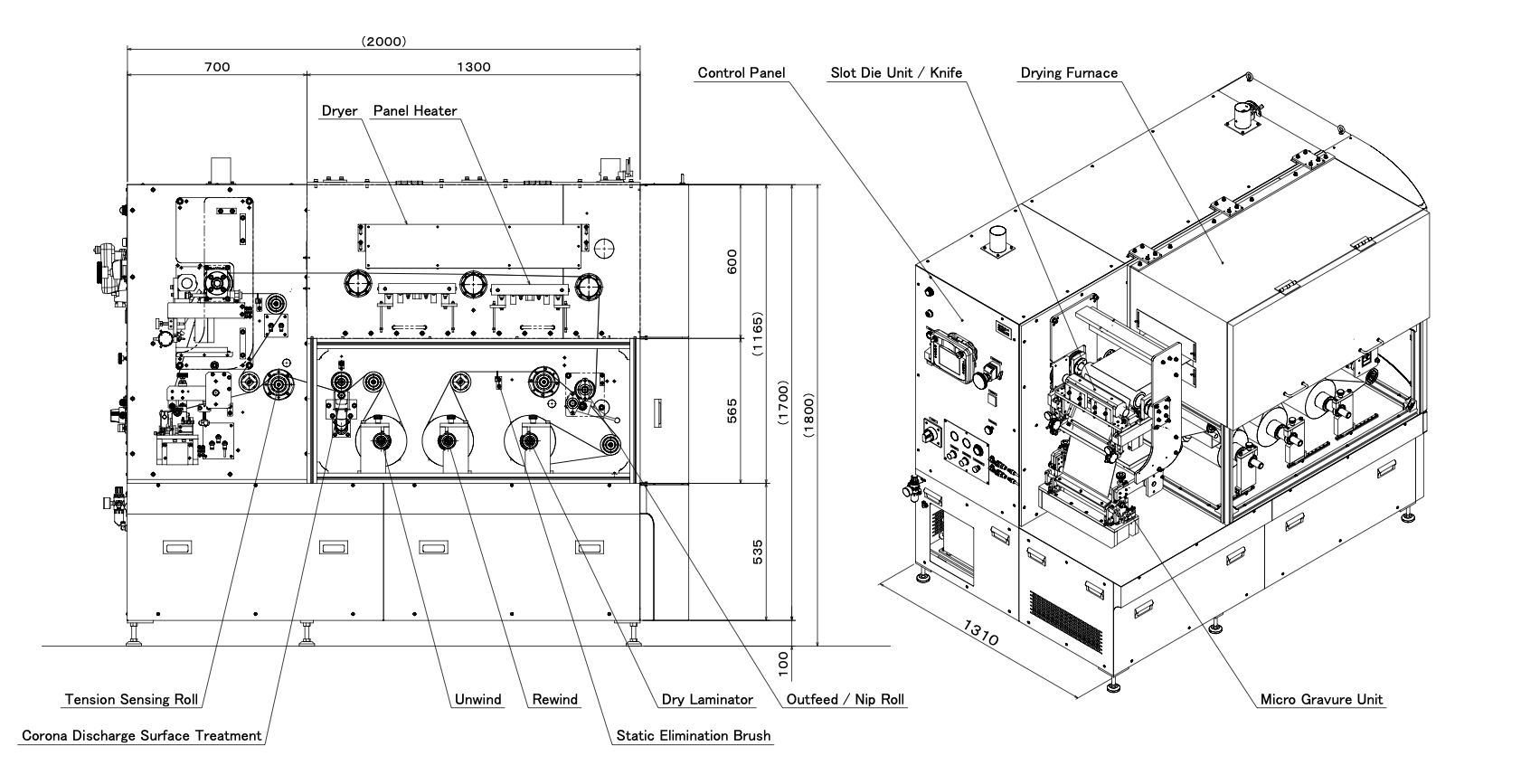

Drawing

TRI coater drawing

Specifications

TRI Coater™ Standard Options
Factory Requirements 3-phase, 200V, 50(60)Hz, 0.5MPa compressed air -
Dimensions - Standard D1310 x W2000 x H1800mm (D51.6” x W78.7” x H70.8”) -
Coating Methods MICROGRAVURE™ Slot die
Knife
Coating Width 250 mm (9.84”) -
Substrate Width 300 mm (11.8”) -
Core Size 3 inch -
Guide Roll Width 350 mm wide (13.78”) -
Unwind/ Rewind Air shafts
Max diameter 200 mm (7.87”)
Max weight 70 kg (154 lbs) 		-
Tension Max 20N Up to 100N
Oven 1.3 meter (4.25’), 1 zone
180° C (356° F)
Hot air & IR panel heaters
Flow rate: 3m/ sec 		Up to 3 zones, total 3.9 meters (12.8’)
HEPA filter
Temperature downgrade to 80° C (176° F)
Line Speed 0.1-5 mpm (0.33-16.4 fpm) 1-10 mpm (3.28-32.8 fpm)
PLC/HMI Yes, detachable HMI with 10 m (32.8’) long cable -
Static Remover Brush Yes -
Solution Feeder - MG: gear pump and gravity feed
Slot die: 1.8L pressurized tank & precision regulator
Dry Laminator Yes -
UV Cure System - Yes
Corona Treater - Yes
VOC Cover - Yes, with/without interlock
Pneumatic outfeed - Yes
E-Stop - Yes
Edge Guide System (EPC) - Yes, with oven extension

Special Features

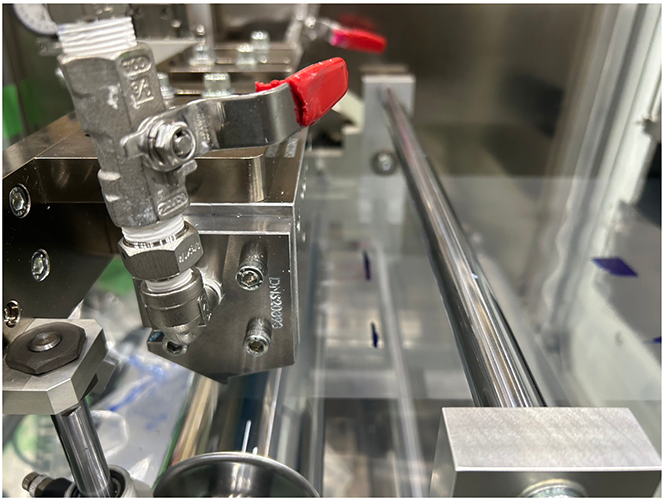

Tri Coater with variable slot die head
Variable slot die head

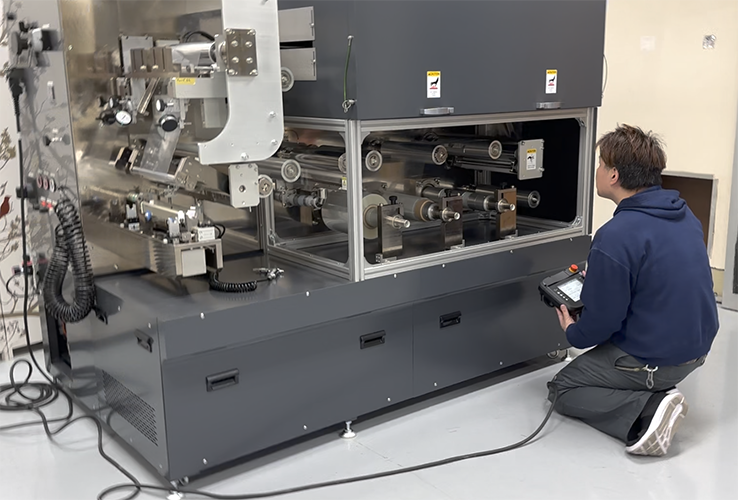

Tri Coater with detachable HMI
Detachable HMI

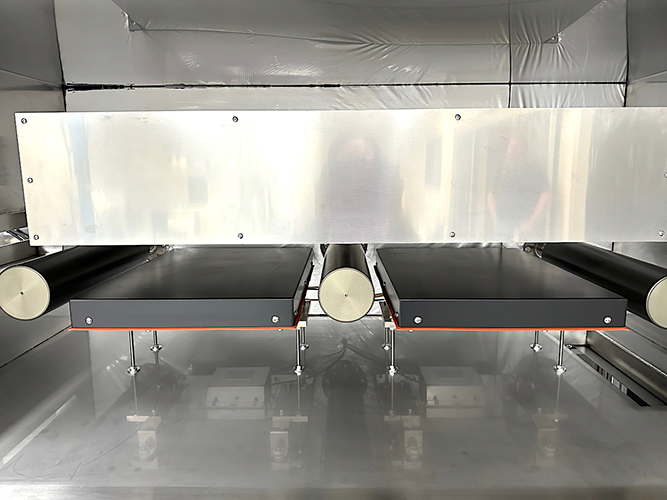

Tri Coater with IR panel heater
IR panel heaters

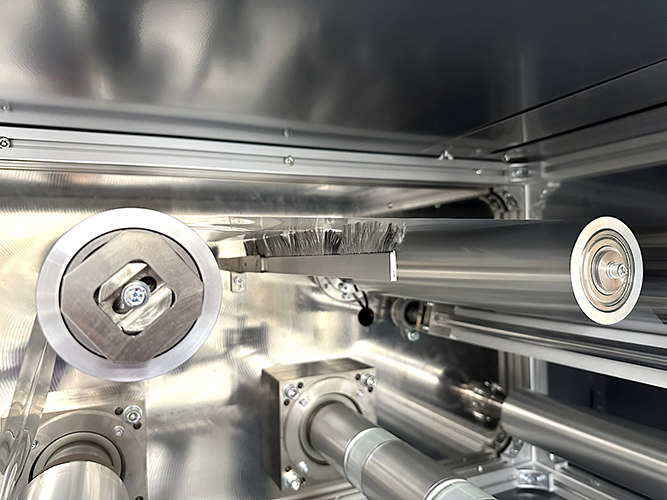

Tri Coater static remover brush
Static remover brush
