μCoater™ 350
Roll-to-Roll, 12" Wide Pilot Coater

μCoater™ 350

Responding to popular demand, we proudly present the wider μCoater™ 650—the largest packaged pilot-scale R2R coating machine in our lineup. It’s quickly becoming a customer favorite due to its shorter lead times and lower costs. This versatile machine can be configured with MICROGRAVURE™ and/or slot die options, and is available with or without a dry laminator and UV capabilities.

If you require a smaller, more compact solution, explore our Mini-Labo™, which is a tabletop roll-to-roll lab coater ideal for smaller-scale projects. This versatile device offers the same high-quality coating capabilities in a conveniently sized package, perfect for limited spaces and budgets.


Please note that μCoater™ 350 is a packaged coater with limited options. It is NOT customizable.

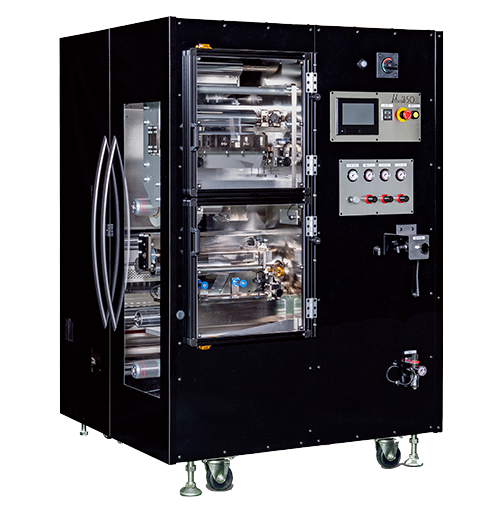

Mu Coater 350
A compact and versatile coater.

Drawing

μCoater 350 drawing with named parts

Specifications

μCoater™ 350 Standard Options
Coating Methods MICROGRAVURE™ Slot die 250mm
Coating Width 300 mm (11.8") -
Substrate Width 320 mm (12.6") -
Core 3" airshaft for 150-350mm (5.9"-13.8") wide cores -
Unwind/ Rewind Holds up to 200mm (7.8") outer diameter, 10kg (22lb) webs -
Tension Max 50N -
Dryer 1 m (3.28') 80°C (176°F) hot air dryer Temperature upgrade to 130°C (266°F)
Line Speed 0.5-5 mpm (1.64 to 16.4 fpm) -
Control PLC/ HMI -
UV System - Yes (3-step 120/80/60WPC)
Slot die Feeding Method - Pressurized tank
Dry Laminator - Yes
Footage Counter Yes -
Exhaust Blower Yes -
Enclosure Yes -

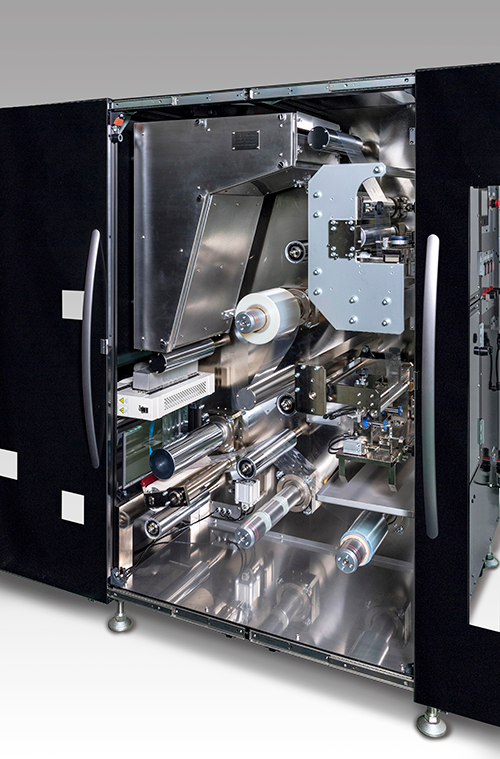

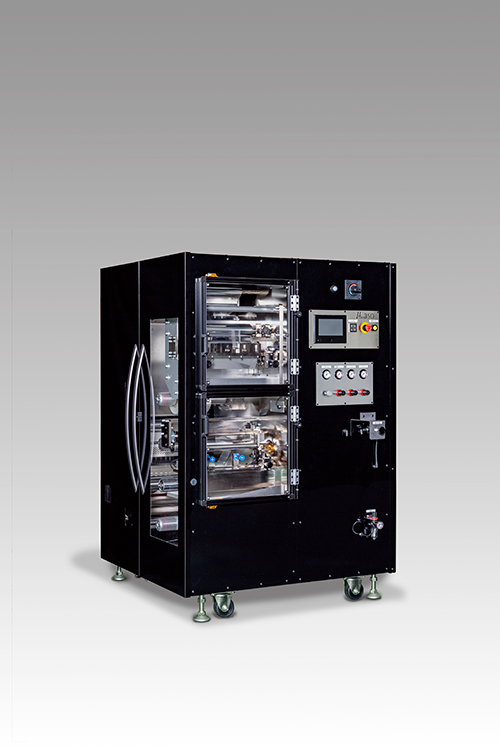

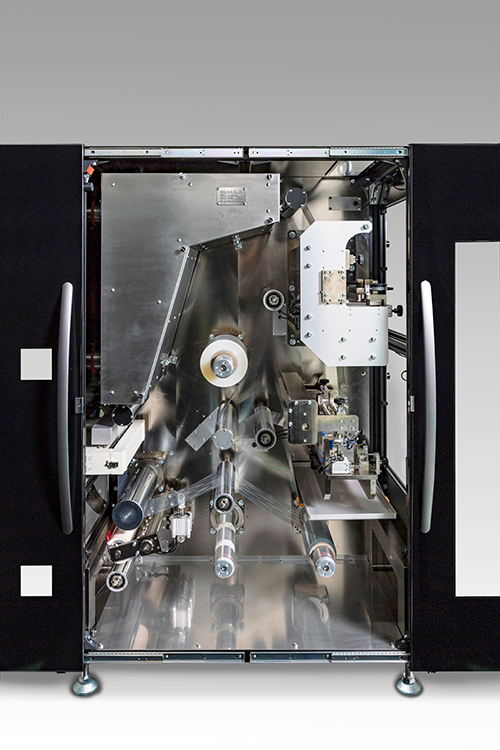

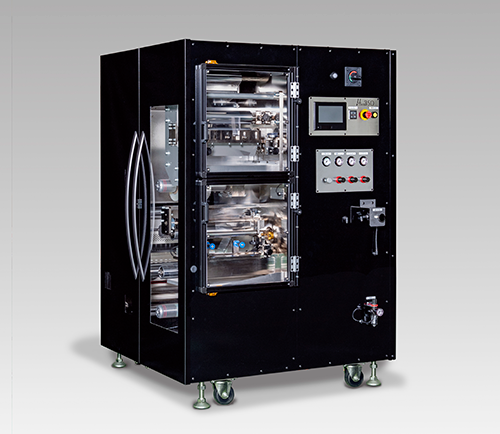

Alternate Views

μCoater™ 350
μCoater 350
μCoater™ 350
μCoater 350
μCoater™ 350
μCoater 350
